- Our high-capacity box features one 50A twist-lock inlet, six 120V GFCI-protected duplexes and one 120/240V 30A locking outlet as well as 30A and 50A RV adapters
- Each receptacle is individually overload protected and features ground-fault protection for added peace of mind
- Our heavy-duty frame and corrosion-resistant enclosure is built tough and can withstand even the toughest environments
- Our outdoor-rated enclosure and weather-resistant, spring-loaded covers keep your connections protected in any weather
- Our box is U.S. and Canada listed and OSHA compliant, so you can trust it to meet all the necessary regulations

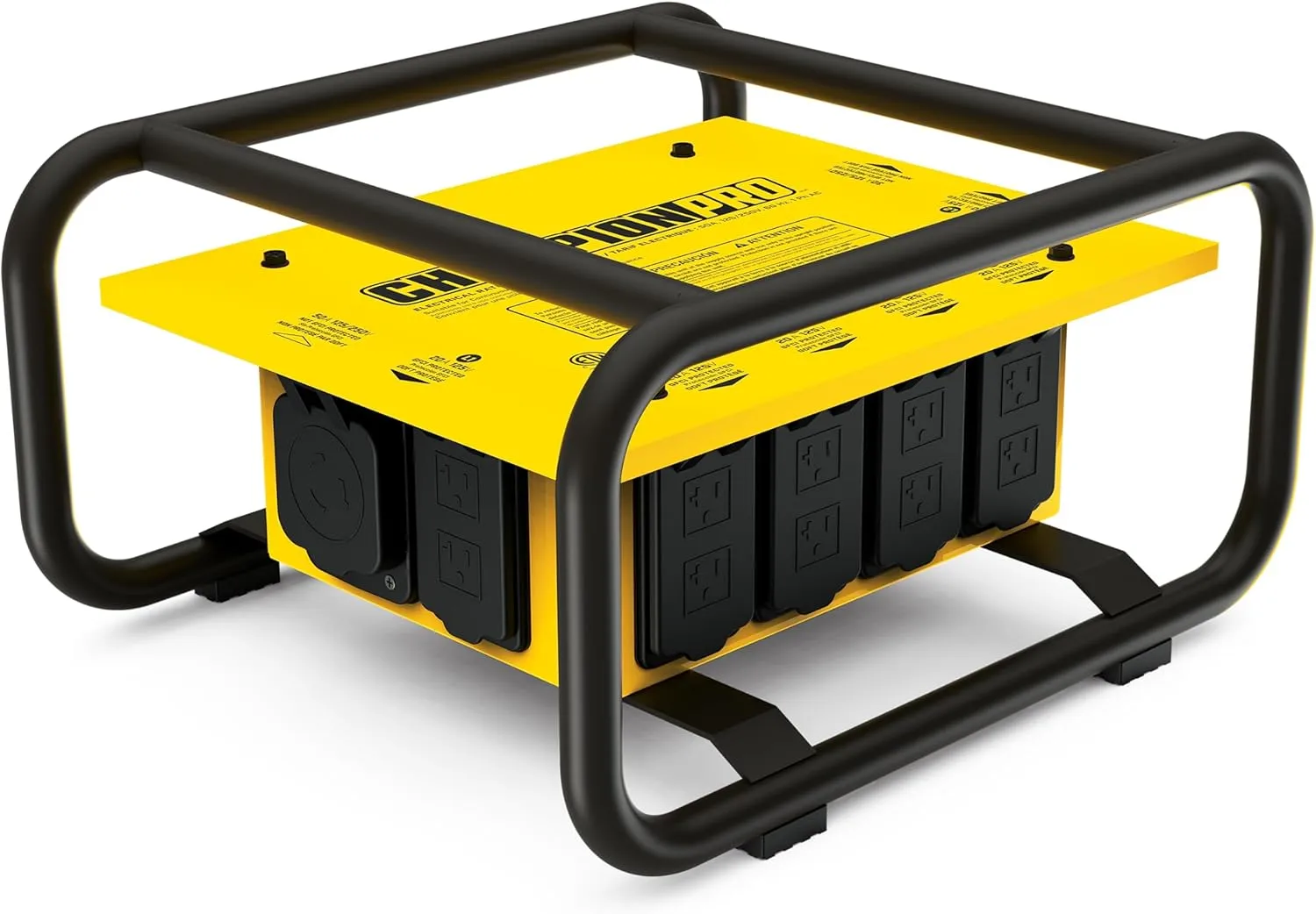

Introducing the Champion Power Equipment Model 201174 Power Distribution Box, the perfect solution for your power distribution needs. This sturdy and reliable box is built to provide you with safe and efficient power distribution, whether you're on a job site, hosting an event, or dealing with a power outage. The Champion Power Distribution Box boasts a heavy-duty steel frame and a powder-coated finish that ensures durability and longevity. It features (6) six 120V GFCI-protected duplex outlets (5-20R) and (1) one 120/240V twist-lock outlet (L14-30R). Also included are 120V 30A (L14-30P X TT-30R) and 120/240V 50A (L14-30P X 14-50R) RV adapters, giving you a variety of options for your power needs. With a total of 50 amps of power, this distribution box can handle heavy loads with ease. The inlet power source can be a 125/250V, 50A maximum generator (with 14-50R receptacle) or utility. Use a Champion 30 ft. 50A 125/250V power cord (model 100828, not included) or equivalent, plug into any 125/250V 50A maximum generator or utility (power source) and then into the power inlet plug (50A 120/240V, SS2-50P) on the Power Distribution Box. The power inlet feeds a split-phase circuit breaker with (6) six 1-pole 20A circuit breakers and (1) one 2-pole 30A circuit breaker. Designed with safety in mind, the Champion Power Distribution Box is equipped with a built-in surge protector, circuit breaker protection, and a locking safety door to keep your connections secure. The box also includes a hinged cover that provides protection from the elements when not in use. The Champion Power Distribution Box is easy to transport and set up, thanks to its compact design and convenient carry handle. Whether you need to power multiple tools on a job site, run appliances during a power outage, or supply electricity to an outdoor event, Champion’s got you covered. Invest in this power distribution box with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 1-year limited warranty and FREE lifetime technical support.
